250 SX-F XC-F EXC-F 2005-2013 Transmission Gearbox Assembly KTM #316

Product Description

250 SX-F XC-F EXC-F 2005-2013 Transmission Gearbox Assembly KTM #316

Removed from a 2012 KTM 250SX-F 250SXF.

Fitment:

• 250 SX-F 2005-2012
• 250 SXS-F 2006-2008
• 250 XC-F 2008-2012
• 250 EXC-F 2006-2013

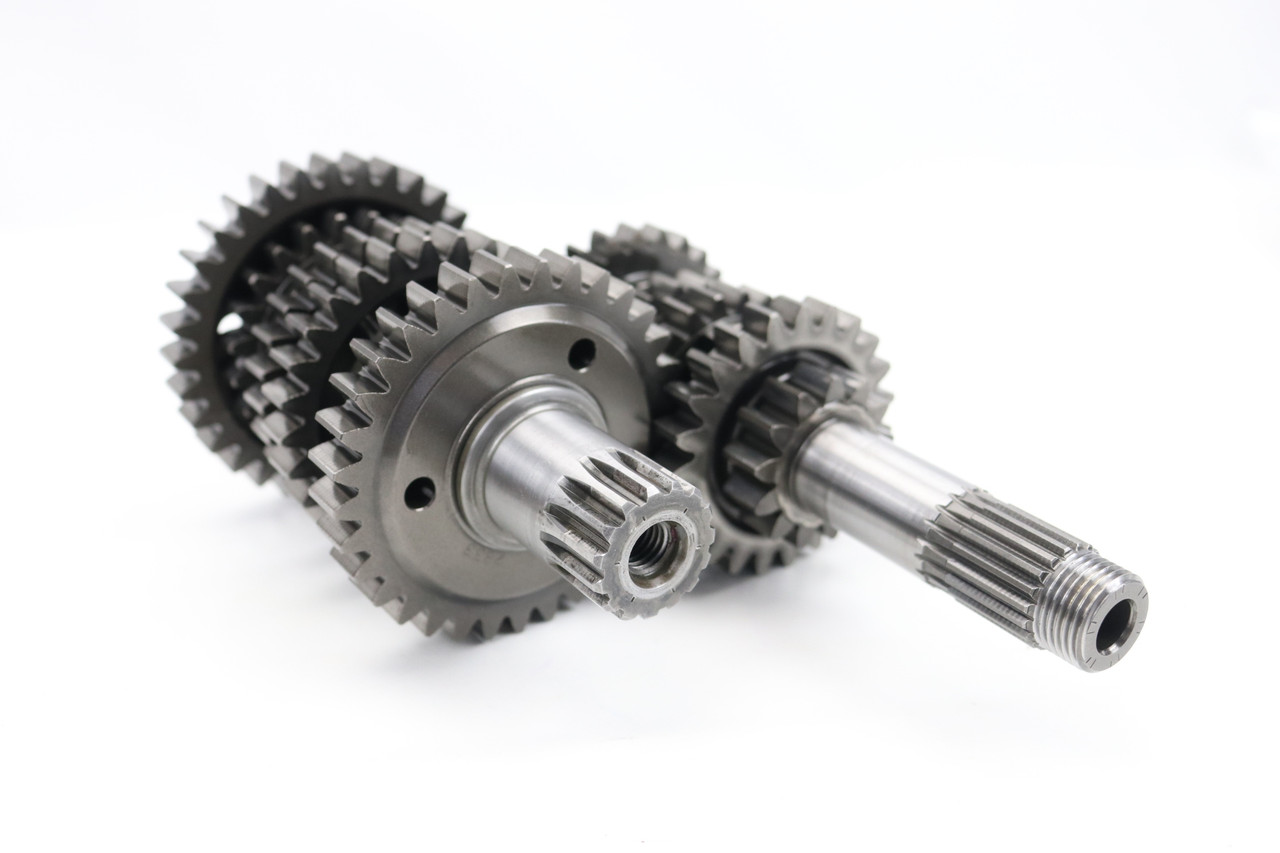

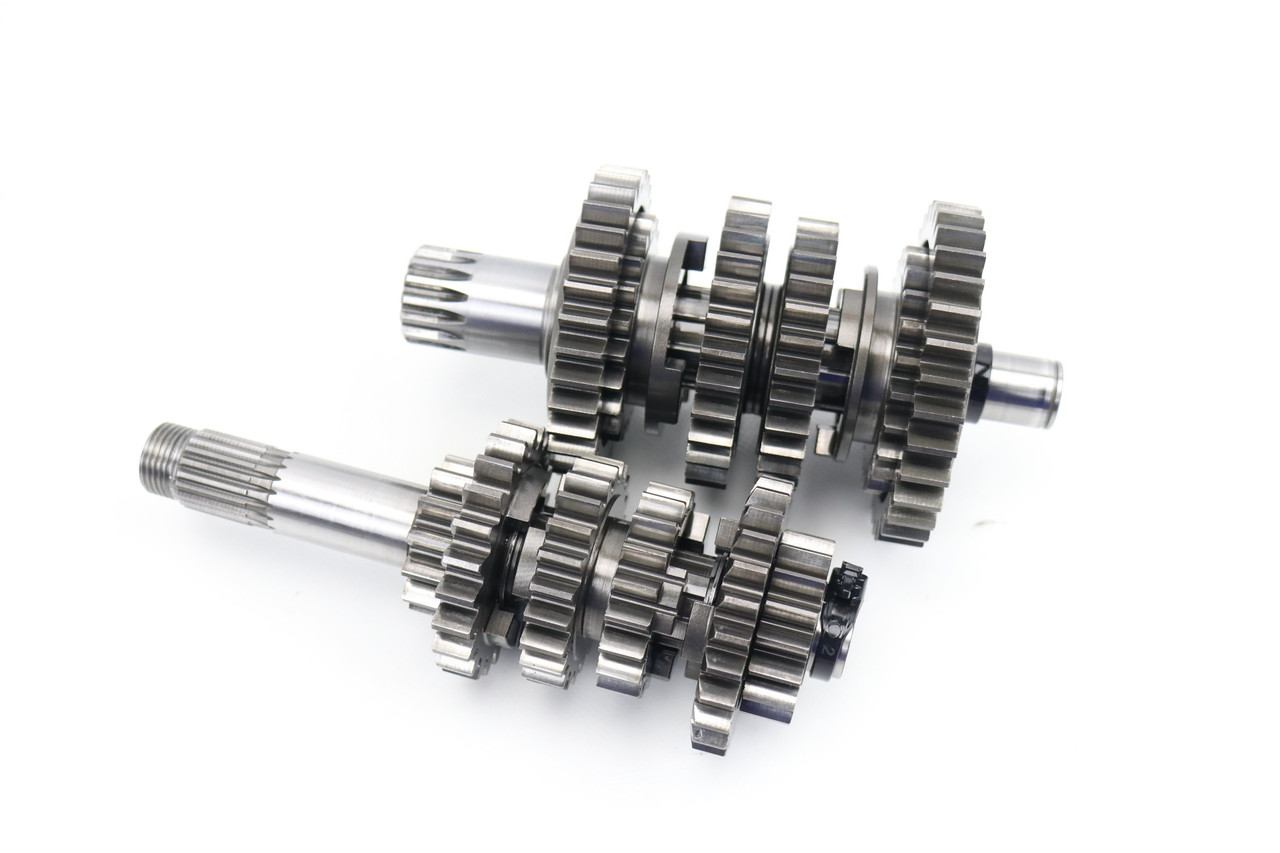

Good used condition transmission assembly, splines and threads are in good shape.

Gear faces and shift dogs are in good condition, gearbox in overall tidy shape.

Transmission has been and checked over by our parts team.

Signs of normal use are present. Please see photos for more details.

Includes all parts shown. If you have any questions feel free to contact us.

Main Part Numbers:

77033001000 - MAIN SHAFT CPL. T=13 05

77033005000 - IDLER G.5TH G.21-T 06

77033003200 - SLIDING GEAR 3./4.G. Z=17/19

77033006000 - IDLER G.6TH G.22-T 06

77033002000 - SOLID GEAR 2ND G.15-T 05

77033010000 - COUNTER SHAFT 05

77033012000 - IDLER G. 2ND G. 30-T 06

77033016200 - SLIDING G. 6TH G.24-T

77033013200 - IDLER 3. GEAR T=28

77033014000 - IDLER G. 4TH G.26-T 06

770 33 015 200 - SLIDING G. 5TH G.25-T 08
